Custom 3D Printable Axial Flux Motor
12 Slot, 24 Pole, 48/72V Design
A custom, mostly 3D printable design for an Axial Flux motor
Capable of 5kW (Air Cooled) or <10kW (Liquid Cooled)
Utilises a Halbach array
Designed for a future custom battery-based ATV
What’s Next: 1. Finite Element Analysis 2. CFD for Air Cooled Spec 3. Test for 5kW
Constraints: Lack of $

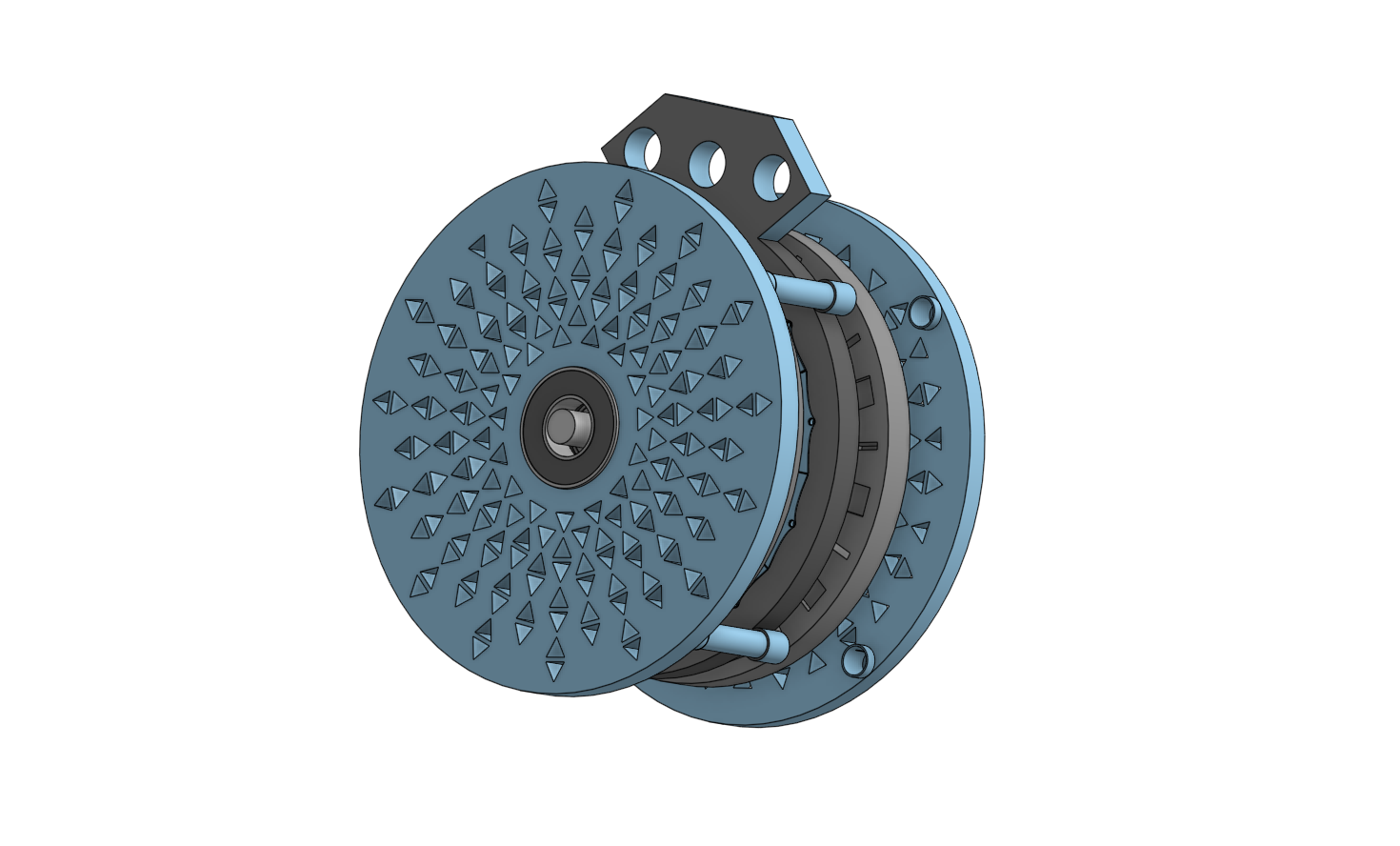

Complete Assembly
3D-Printable Stator with IO for Speed Controller

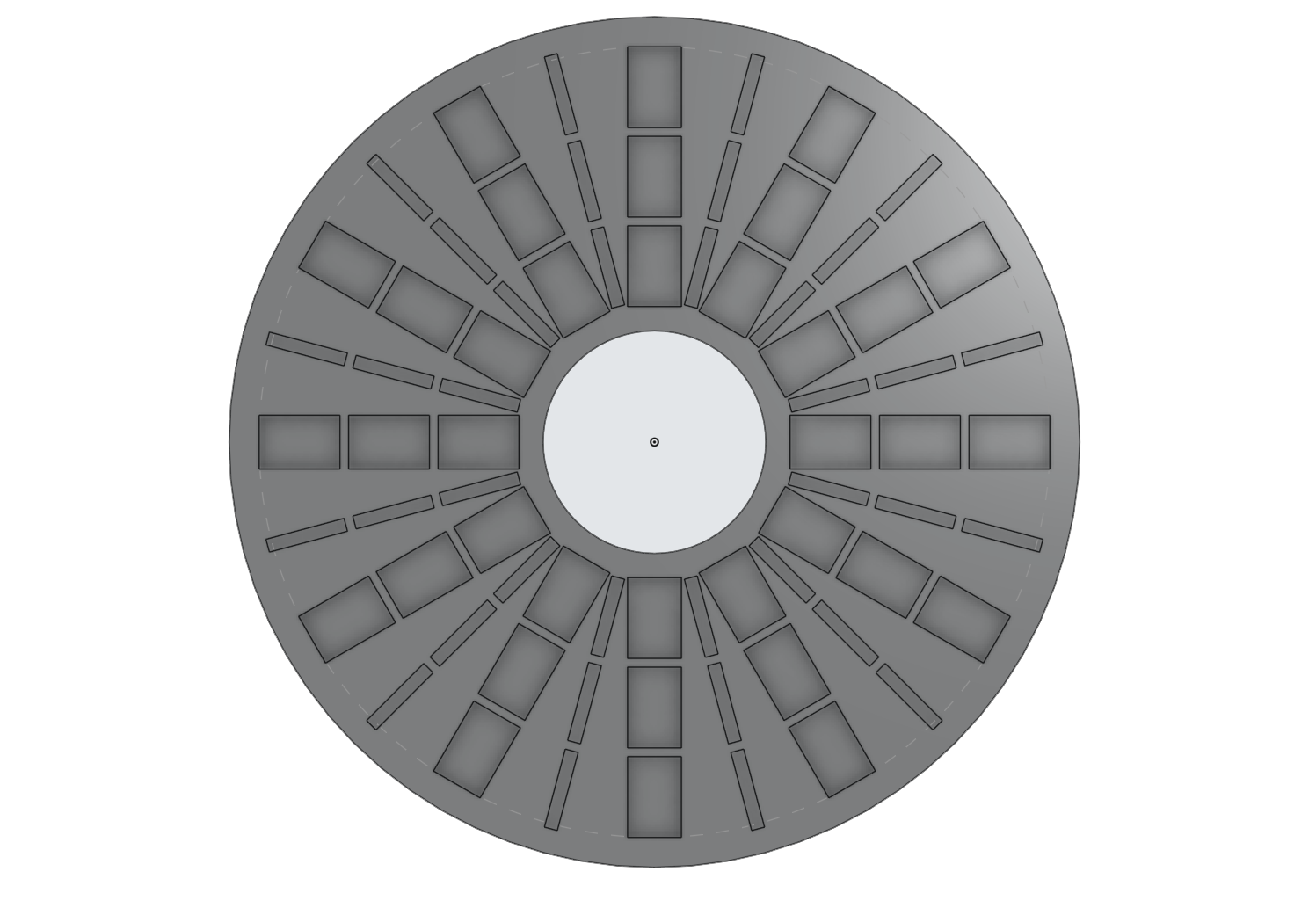

3D-Printable Rotor (Adjust print settings based on clearances)
25x52x15mm Bearing
3/4 x 1/2 x 1/8 Inch N52 Neodymium Magnet
Windings Bracket (Manual)
Housing PT 1 WIP

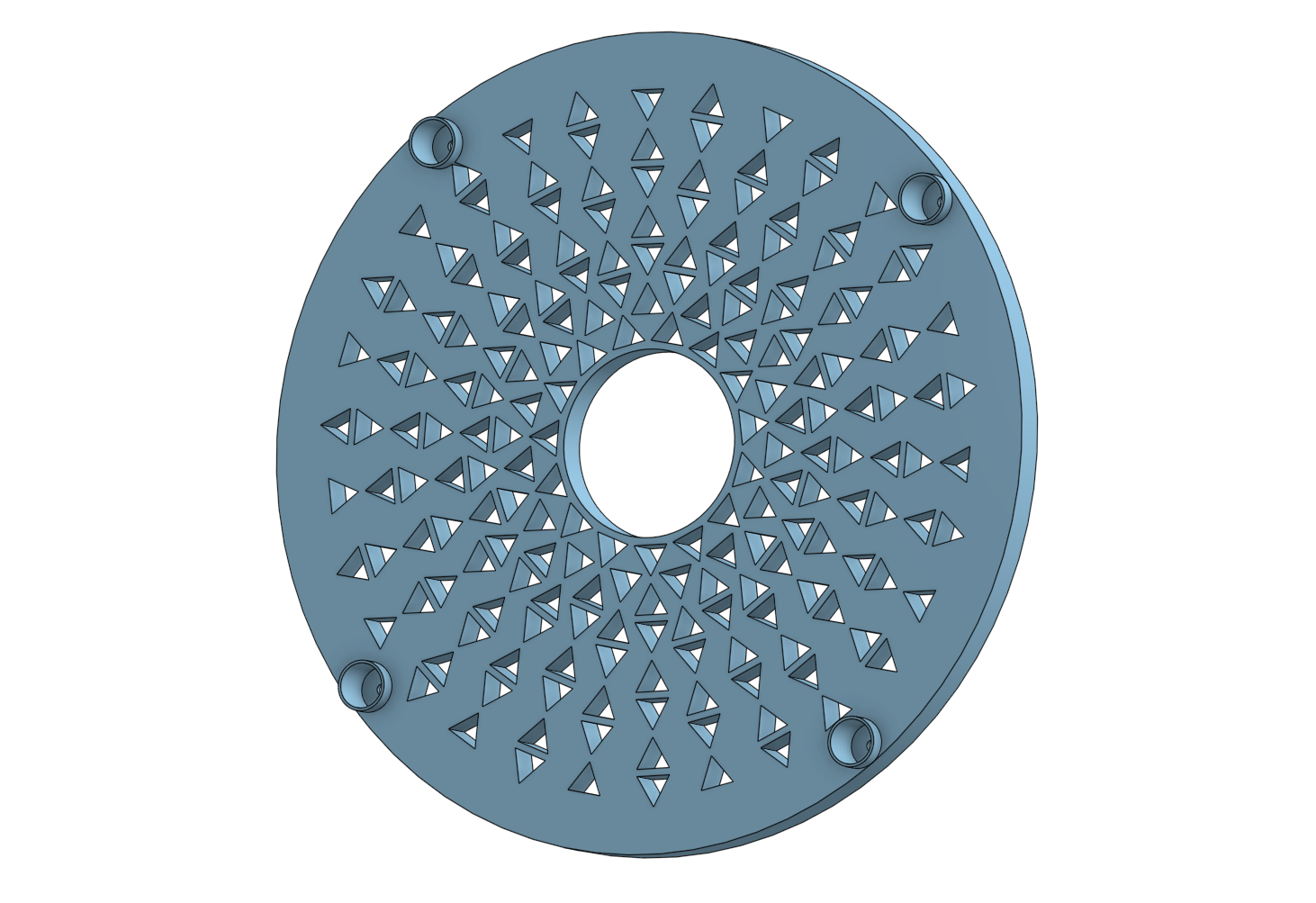

Housing PT 2 WIP

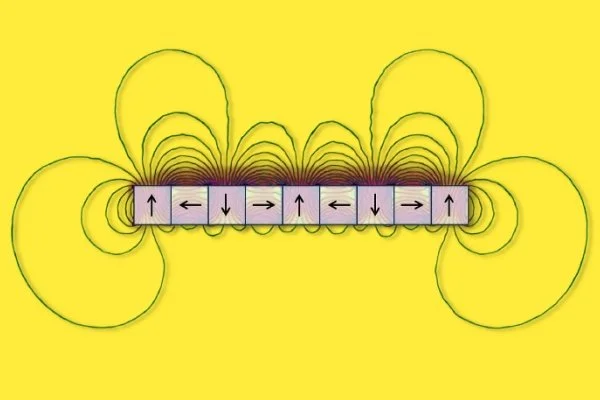

Halbach Array Description
